PSR Tracking

Part #: SkyRadar PSR-MTI-Ver.4.1
Get a PDF version of this webpage PDF

SkyRadar Target Tracking is part of SkyRadar’s Radar Training System. It is a fully automated target tracking device. Applying the Moving Target Indication Procedure, it discriminates targets against clutter. Indicated targets are automatically tracked. For this, the radar antenna works in pivoting mode.

SkyRadar Target Tracking Module
SkyRadar Target Tracking Module

The Target Tracking Module consists of:

  • One (1) license for Target Tracking software activation (software deployment into the hardware factory-provided).

The Module has the following features:

  • Multi-functional Target Detector (MTD) function (using Doppler radar)
  • Multi-functional Moving Target Indicator (MTI) function
  • Fully automatic tracking of indicated target through the antenna, operating in pivoting mode
  • Target Plot creation and display, see Figure 20 and Figure 21
  • Recording of Target Plot
  • Student can experiment on additional filters and algorithms including own developments (i.e. with MATLAB, see Chapter 3.6).

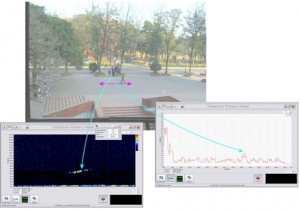

Target Tracking with SkyRadar's MTI
Target Tracking with SkyRadar’s MTI
