Tracking moving objects is one of the core functions of radar systems, particularly in applications like air traffic control (ATC) where detecting and following aircraft is vital for safety.
Two important radar concepts that support this capability are Moving Target Indication (MTI) and the Doppler effect. These principles allow radar systems to differentiate between stationary and moving targets, ensuring that critical objects are accurately detected and tracked. SkySim provides a robust platform for simulating these functions, allowing users to understand how MTI and Doppler radar systems operate in real-world environments.
Moving Target Indication (MTI)
Moving Target Indication is a radar technique used to identify and highlight objects that are in motion, filtering out stationary objects that might otherwise clutter the radar display. This is particularly important in environments where there are many stationary objects, such as buildings or terrain features, that do not need to be tracked.
MTI works by analyzing the Doppler shift in the radar signal caused by a moving object. When a radar wave reflects off a moving target, the frequency of the return signal changes, indicating motion. This shift allows the radar to focus on moving objects and ignore stationary ones, making it easier to track aircraft or vehicles in a busy environment.
The Doppler Effect and Its Role in Radar

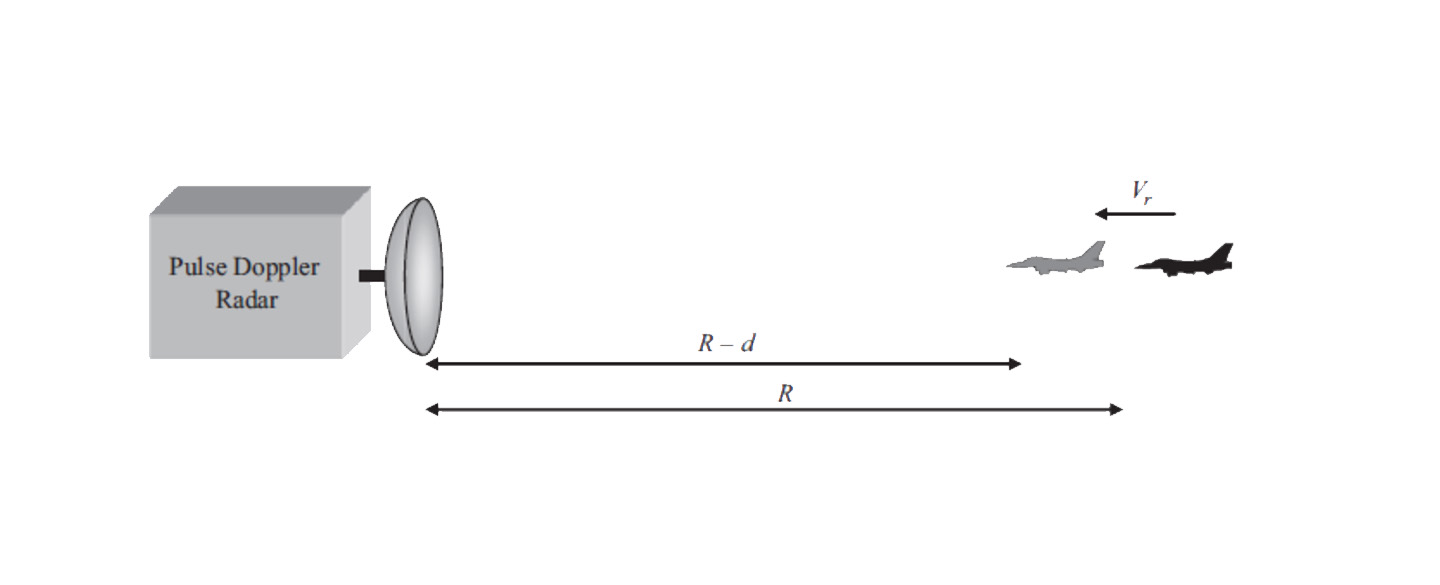

The Doppler effect refers to the change in frequency or wavelength of a wave in relation to an observer who is moving relative to the wave source. In radar systems, this effect is used to measure the velocity of a moving target.
When an object is moving toward the radar, the frequency of the reflected radar wave increases (known as a positive Doppler shift). Conversely, when the object is moving away from the radar, the frequency decreases (negative Doppler shift). By measuring this frequency shift, radar systems can calculate the speed of a moving object, providing valuable information for tracking fast-moving aircraft or vehicles.
Simulating MTI and Doppler in SkySim
In SkySim, users can explore the principles of MTI and the Doppler effect through practical simulations. For example, users can set up scenarios where multiple targets are moving at different speeds and directions, and observe how the radar system distinguishes between stationary and moving objects. This hands-on experience helps users understand how MTI and Doppler radar systems filter out clutter and focus on the objects that matter most.
Trainees can also experiment with different velocity thresholds to see how changing the minimum speed for detection affects radar performance. By simulating different target speeds, students can observe how the Doppler effect impacts radar accuracy in tracking moving objects. This is particularly useful in air traffic control, where precise velocity measurements are essential for maintaining safe distances between aircraft.
Practical Applications in Civil Aviation
In civil aviation, MTI and Doppler radar systems are crucial for monitoring aircraft movement. Air traffic controllers rely on these technologies to track the speed and direction of multiple aircraft, ensuring that each is following its designated flight path and maintaining safe separation from other aircraft. The ability to filter out stationary objects, such as terrain or ground infrastructure, allows controllers to focus on the dynamic airspace and make informed decisions to prevent collisions.
Hands-On Learning with SkySim
SkySim’s simulation tools allow users to gain practical experience with MTI and Doppler radar systems, providing a deeper understanding of how these technologies work in real-world applications. By experimenting with different target velocities, directions, and clutter environments, trainees can learn how to optimize radar systems for moving target detection and tracking.
This hands-on experience is invaluable for anyone working in radar operations, whether in civil aviation, military applications, or even in industries like automotive radar for autonomous vehicles. SkySim offers a comprehensive platform for mastering these critical radar techniques.
