Radar target simulation is a fundamental part of understanding radar system operations, and SkySim offers an advanced platform for building and experimenting with these scenarios. In both civil and military radar applications, the ability to simulate various target behaviors and characteristics is critical for training and testing radar performance in real-world environments.
Simulating Targets in Radar Systems
Radar targets are objects that reflect the radar’s transmitted signals back to the receiver. The strength and quality of this reflection depend on several factors, including the target’s size, shape, material, and movement. In radar terminology, these characteristics are quantified as the radar cross-section (RCS), velocity, azimuth, and elevation.

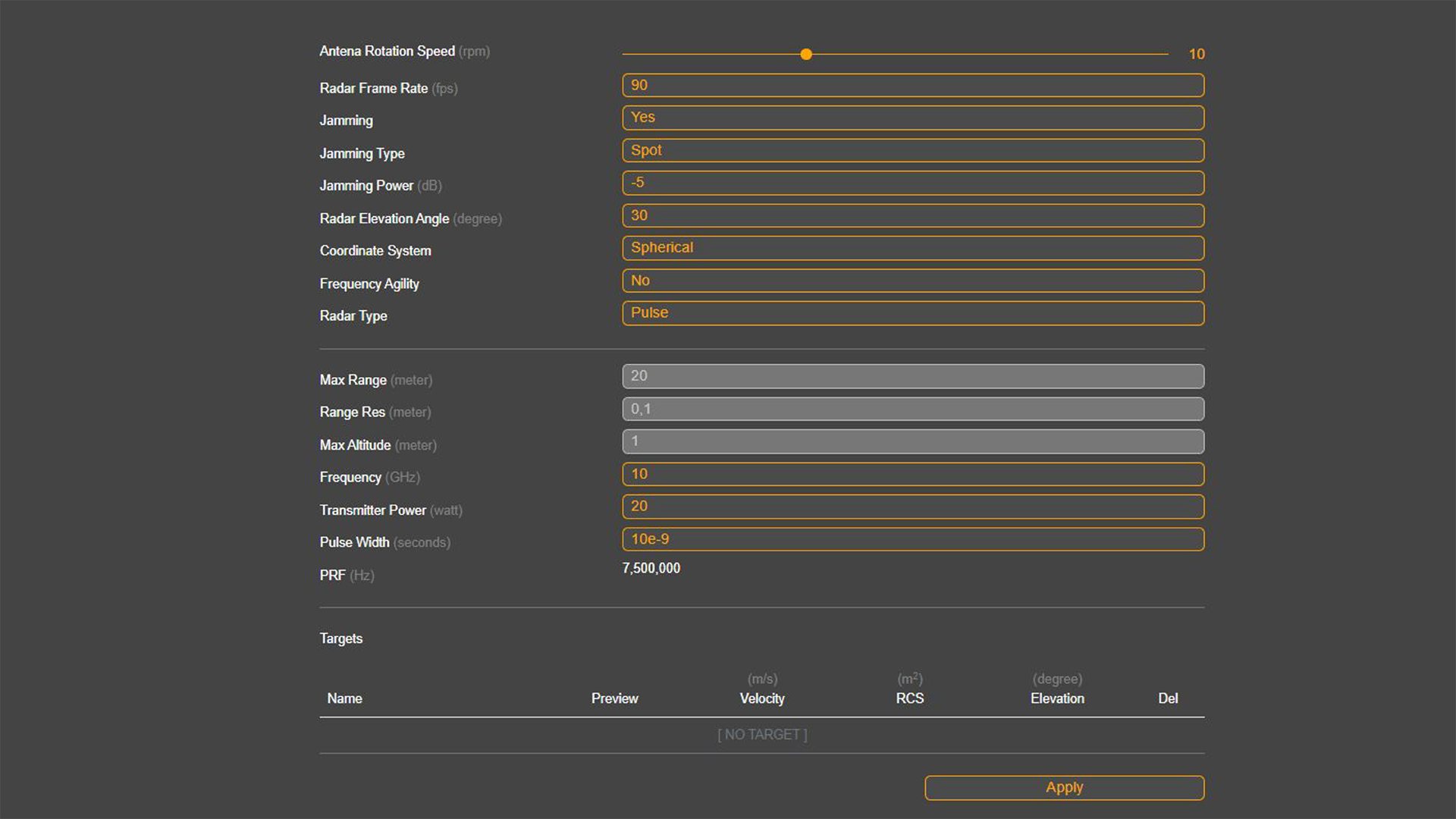

SkySim allows users to create customizable target scenarios, defining these parameters to simulate different types of objects, such as aircraft, drones, or vehicles. Users can specify:
- Azimuth angle: The horizontal direction from the radar to the target.
- Velocity: The speed and direction of the target.
- RCS: The measure of the target’s ability to reflect radar signals.
- Elevation: The vertical angle from the radar to the target.
Building Complex Target Scenarios
SkySim’s flexibility allows for the simultaneous simulation of multiple targets, each with unique characteristics. This capability is particularly useful in civil applications like air traffic control (ATC), where radar operators must manage and track multiple aircraft in a congested airspace.
For instance, in a busy airport scenario, the radar system may need to detect and track dozens of aircraft moving at different speeds and altitudes. Using SkySim, trainees can create a virtual airspace filled with targets, each following a different trajectory. This type of scenario helps users understand how radar systems must differentiate between targets, manage clutter, and maintain continuous tracking of fast-moving objects.
SkySim also includes tools for simulating target maneuverability and signal return quality. For example, users can simulate a target with a low RCS, such as a small drone, and observe how it affects the radar’s ability to detect and track the object. This knowledge is crucial for radar engineers and operators who need to optimize radar systems for detecting both large and small targets.
Practical Training for Real-World Challenges
The ability to simulate complex radar scenarios in SkySim helps prepare trainees for real-world challenges. In civil aviation, radar operators are responsible for tracking multiple aircraft, ensuring that each is safely guided through its flight path. By building and analyzing target scenarios in SkySim, trainees develop the skills needed to handle complex airspace environments and ensure that radar systems are optimized for accurate target detection.
SkySim’s target simulation capabilities are a powerful tool for training and educating future radar operators, providing a practical and engaging learning experience.
