SkySim is a sophisticated radar simulator designed specifically for training and educational purposes. Unlike military-focused simulators, SkySim centers its capabilities around civil radar applications, including air traffic control (ATC) and various civilian surveillance tasks. SkySim allows users to explore the intricacies of radar technology in a controlled environment, making it a powerful tool for students, engineers, and researchers looking to understand and implement radar systems.SkySim works in conjunction with FreeScopes Basic I, II, III, and ATC I and II, providing a complete learning ecosystem for radar signal processing and visualization. This blog will explore how SkySim operates, its key features, and the advantages it offers to users in civil applications.

Overview of Radar Systems in SkySim

At its core, radar is an electromagnetic sensor that detects and locates objects by transmitting energy, which is reflected by targets and returned to the radar antenna. The received signals are processed to determine the range, azimuth, and elevation of the targets. This basic principle is applicable across a variety of radar systems, all of which can be explored within SkySim.

SkySim includes simulations of four main types of radar systems:

  1. Pulse Radar: This is the canonical form of radar that sends out short pulses of electromagnetic energy to detect targets.
  2. Pulse Compression Radar: A radar system that enhances range resolution while maintaining long detection ranges.
  3. Pulse Doppler Radar: A system that combines the principles of pulse radar and Doppler effect to measure both the range and velocity of targets.
  4. Frequency-Modulated Continuous-Wave (FMCW) Radar: A radar system that continuously transmits a signal whose frequency varies over time, used for range and velocity detection.

Radar-choice
SkySim allows users to choose from these radar types and build radar simulations tailored to specific scenarios. These simulations are invaluable for civil applications, where understanding the differences between these radar systems can lead to more effective monitoring and control strategies.

FreeScopes Integration: Visualizing Radar Signals

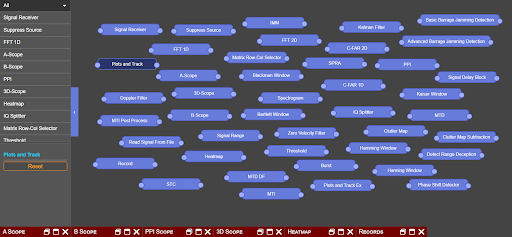

SkySim is fully integrated with FreeScopes, a flexible digital signal processing and visualization tool that helps users interact with radar signals and their associated data. The FreeScopes environment provides a series of blocks that can be dragged and dropped to simulate the radar signal processing chain. This modular approach allows users to experiment with different configurations, understanding how changes in parameters affect radar performance.

FreeScopes-Blocks

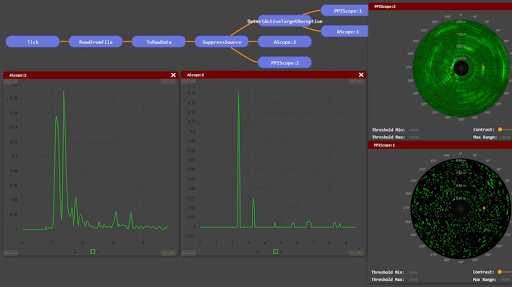

The integration between SkySim and FreeScopes Basic I, Basic II, Basic III, and ATC I & II offers a wide range of educational possibilities. Students can use these modules to practice detecting targets, adjusting radar and DSP properties, and analyzing radar signal outputs. FreeScopes' interactive visualization tools, such as the A-scope and PPI (Plan Position Indicator), allow users to observe radar echoes and evaluate the performance of their simulated radars in real-time.

Setting-TargetsSimulating Radar Scenarios: From Target Insertion to Signal Processing

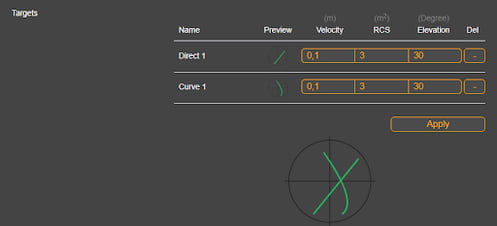

SkySim provides the ability to simulate various radar scenarios, ranging from basic target detection to more complex multi-target environments. Users can manually add targets to the radar simulation, defining parameters such as the target’s azimuth angle, velocity, radar cross-section (RCS), and elevation. These variables allow for the creation of dynamic scenarios where targets move along predefined trajectories.

For example, a user can insert a target with a radar cross-section of 4m², set its start and end positions, and define the target’s velocity and trajectory. SkySim also allows for the simultaneous simulation of multiple targets, enabling users to analyze how a radar system handles complex environments.

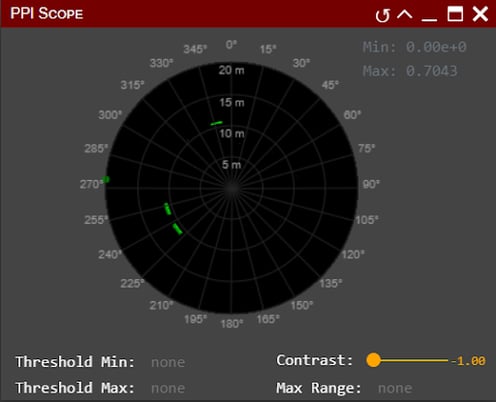

PPI-in-SkySimThis is particularly relevant in civil radar applications, such as air traffic control, where multiple aircraft need to be tracked simultaneously.

To assist with visualization, users can connect the simulated radar to the A-scope and PPI in FreeScopes, allowing them to see the reflected signals from their targets.

By adjusting parameters such as radar antenna speed or target movement, users can experiment with how different factors influence radar performance.

Learning Key Radar Concepts Through SkySim

SkySim is designed not only to simulate radar systems but also to teach fundamental radar concepts. One of the key topics users can explore is the effect of noise in radar systems. In any real-world radar system, noise is a significant factor that can hinder target detection. SkySim simulates noise and allows users to apply techniques such as threshold filtering to suppress it. Through tasks and exercises in the SkySim environment, users can learn how to balance noise suppression with target visibility, a critical skill in civil radar applications.

SkySim-ApplicationAnother important concept is the radar cross-section (RCS), which refers to the amount of energy reflected by a target. In SkySim, users can explore how different RCS values affect radar detection. For instance, a larger target with a bigger RCS will reflect more energy, making it easier for the radar to detect it. By adjusting the RCS of their simulated targets, users can see firsthand how radar systems perform in different scenarios.

Additionally, SkySim covers other fundamental topics, such as range resolution (the ability of a radar to distinguish between two closely spaced targets), radar antenna properties, and pulse repetition frequency (PRF). Each of these topics is essential for anyone seeking a deeper understanding of radar technology.

Air Traffic Control Training with SkySim

One of the most compelling applications of SkySim is its use in civil and military ATSEP training. By using the ATC modules in FreeScopes, SkySim can simulate realistic air traffic scenarios where multiple aircraft are moving through controlled airspace. Air traffic controllers can use these simulations to practice identifying, tracking, and managing aircraft, making it an ideal training tool for both current and aspiring air traffic control professionals.

The ability to insert targets with specific flight paths, altitudes, and speeds is especially valuable in ATC training. SkySim’s radar simulations can also include different weather conditions and noise environments, helping trainees develop the skills needed to manage traffic in challenging situations.

A Comprehensive Tool for Civil Radar Applications

SkySim is a powerful and flexible radar simulation tool that is designed for educational and training purposes, particularly in civil applications like air traffic control and surveillance. Its integration with FreeScopes makes it an ideal platform for teaching radar concepts, experimenting with different radar systems, and simulating real-world radar scenarios. If you add SkyRadar's NextGen Pulse or FMCW radars, you can even blend simulated and real worlds.

By offering a hands-on approach to learning radar technology, SkySim enables users to build a deep understanding of how radar systems operate in practice.
