Primary and secondary radar towers are electro-mechanical devices, with motors and motor control systems. SkyRadar's electromechanical laboratory provides a comprehensive learning environment for various kinds of motors and their control.
Overview

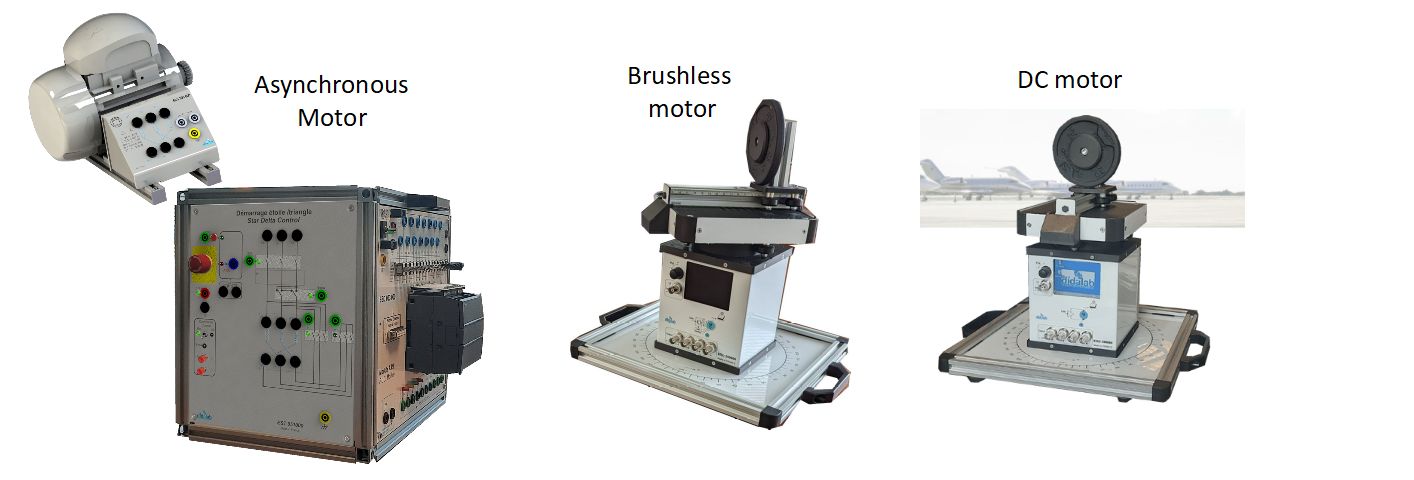

The laboratory includes various motors in miniaturized towers
- DC-motor
- Synchronous brushless 3-phase AC motor
- Asynchronous 3-phase AC motor with servo-control.
DC-Motor and Synchronous Motor with Servo Control

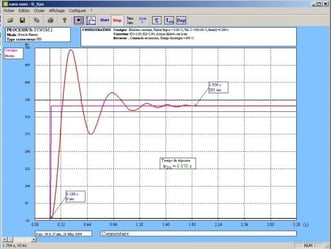

The laboratories teach how to control DC-Motor and the synchronous motor with servo-control. A powerful visualisation and control software allows to control the motors and to visualize parameters.

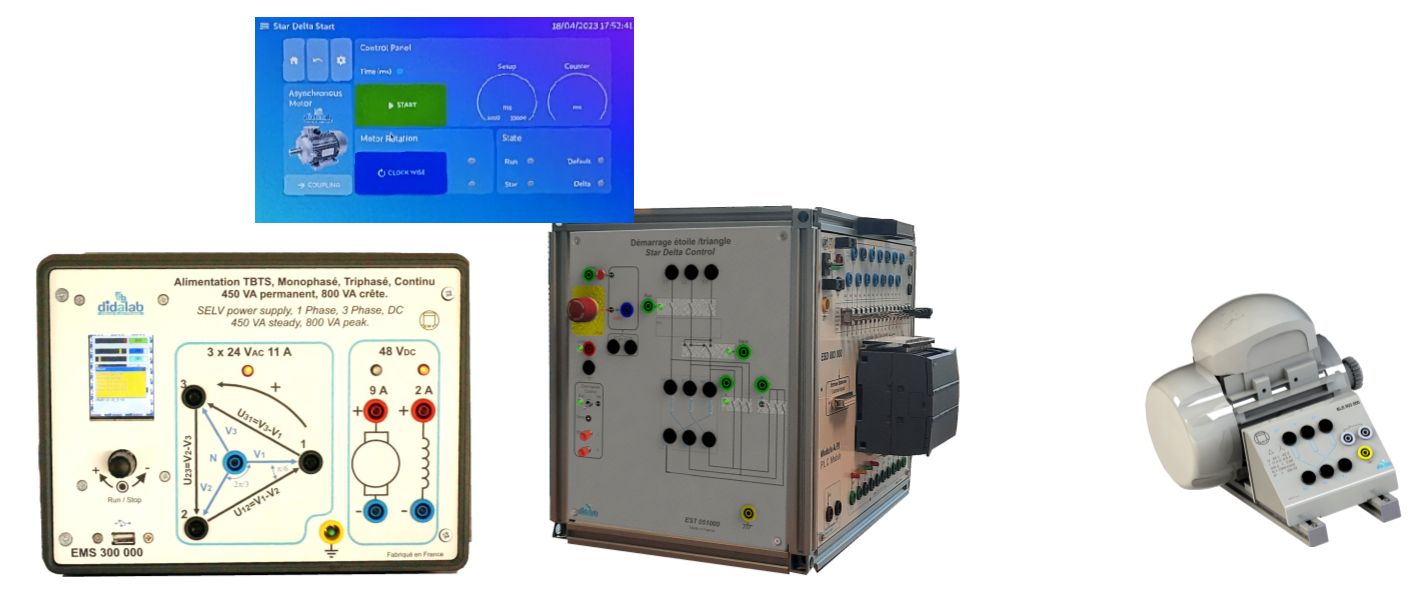

Asynchronous Motor and Start-Delta Ramp-up
The asynchronous motor is controlled by a Siemens Step 7 PLC. Its starts up in a star-delta mode.
