Mastering Radar Cross Section (RCS): Real-World Applications with SkySim

The Radar Cross Section (RCS) is a crucial factor in radar systems, as it determines how detectable an object is. In simple terms, RCS is a measure of how much radar energy a target reflects back to the radar receiver. This reflection varies based on the size, shape, material, and orientation of the object. Objects with larger RCS values, such as aircraft or ships, tend to reflect more radar signals and are therefore easier to detect. Conversely, smaller objects or those designed to absorb radar waves (like stealth aircraft) have lower RCS and can evade detection more easily.

In real-world radar applications, understanding RCS is essential for both detecting objects and designing systems that can identify targets with high accuracy. SkySim allows users to explore these concepts interactively by simulating targets with varying RCS values, providing practical insights into how radar systems perform in different scenarios.

How RCS Affects Radar Detection

The radar cross section of an object is influenced by several factors:

Size: Larger objects have a greater surface area for reflecting radar signals, resulting in a higher RCS. This is why commercial aircraft and ships are more easily detectable by radar.
Material: Objects made of materials that absorb radar signals (e.g., certain composites or stealth technology) have lower RCS, making them harder to detect.
Shape: The shape of an object can also influence its RCS. Objects with flat surfaces reflect radar signals more effectively, while curved or irregular shapes may scatter radar waves, reducing their detectability.
Orientation: The angle at which radar waves hit a target affects how much of the signal is reflected back to the receiver. For example, an aircraft may be more detectable when viewed from below than when viewed from the side.

These factors make RCS an important consideration in both civil and military radar applications. In civil aviation, radar systems must be able to detect a wide range of aircraft, from large commercial planes to smaller private jets and drones. Understanding how RCS affects radar performance allows engineers and operators to optimize radar settings for better target detection.

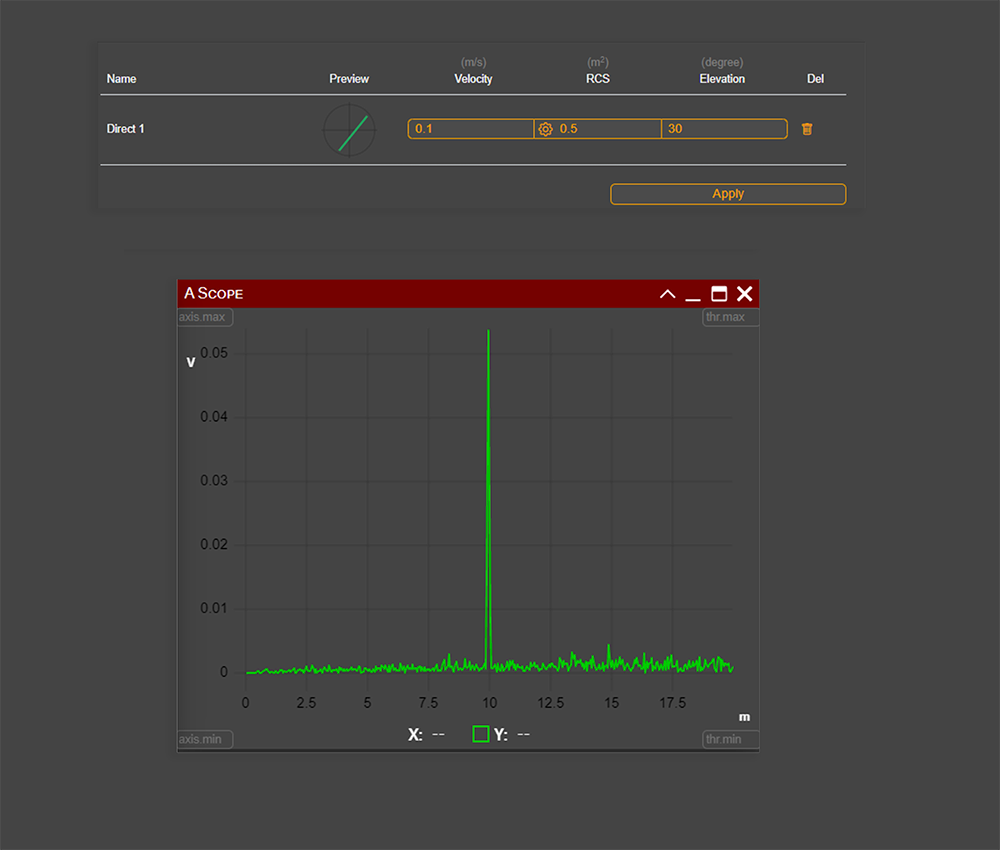

Simulating-RCS-in-SkySim

Simulating RCS in SkySim

SkySim allows users to simulate various targets with different RCS values, giving them a practical understanding of how RCS impacts radar detection. For instance, a user can create a scenario where an aircraft with a high RCS (such as a commercial jet) and a drone with a low RCS are both flying through the same airspace. By observing how the radar responds to these different targets, trainees can learn to adjust radar parameters to improve detection accuracy.

In a typical SkySim exercise, users can:

Set the RCS of different targets: Trainees can input specific RCS values for simulated targets and observe how the radar system detects or misses them.
Analyze signal reflections: SkySim’s integration with FreeScopes allows users to visualize the radar signal returns from different targets, helping them understand how RCS affects radar detection in real-time.
Experiment with radar settings: Users can adjust radar parameters, such as pulse repetition frequency (PRF) and antenna beamwidth, to optimize the radar’s ability to detect targets with varying RCS values.

Practical Applications in Civil Aviation

RCS is particularly relevant in civil radar applications like air traffic control (ATC), where operators must track aircraft of different sizes and capabilities. Commercial airliners, which have high RCS values, are relatively easy to detect, but smaller private aircraft or drones with lower RCS may pose challenges. In busy airspace, it’s essential that radar systems can reliably detect and track all targets to ensure safety and prevent collisions.

SkySim helps ATC trainees and radar engineers develop the skills needed to optimize radar systems for different scenarios. By simulating various target configurations and experimenting with RCS values, users can better understand the challenges of detecting small or stealthy objects and develop strategies for overcoming these obstacles.

What Next?

Understanding radar cross-section (RCS) is vital for optimizing radar systems in both civil and military applications. SkySim provides a powerful platform for exploring RCS and its impact on radar detection, allowing trainees to experiment with different targets and radar settings in a controlled environment. Whether you're working in air traffic control or radar system design, mastering the principles of RCS is essential for ensuring accurate and reliable radar performance.

Stay Tuned

Stay connected with our ongoing publications on SkySim and relevant qualification and learning solutions for ATSEP and military radar officers.
